Total Station Dealers In Chennai

Model - Galaxy G2

  Ingenious & stylish design

  The extraordinary inbuilt radio

  Ultimate goals of full signals tracking

  Worry-free surveying

  The fact moving ahead into the future

  Measure whatever you want

  Smart reminder of base station attitude

Model - G7

Model - H6

  Android 8.1 Operating System, 64GB ROM

  5" sunlight touch screen

  Full keypad, input faster

  9200 mAh large capacity battery works more time

  4G cellular module, dual sim card slot.

Model - N6+ Series

  2" / 5" Accuracy

  Long-Range Prism (5000m) and Non-Prism (1000m/1500m) EDM

  Trigger Key, Hot key forfaster operation

  Cable-Free Connection by Wireless Bluetooth or USB Stick

  Bigger internal memory, Save 96000 data block

  Longer operation Time up to 14 hours per battery.

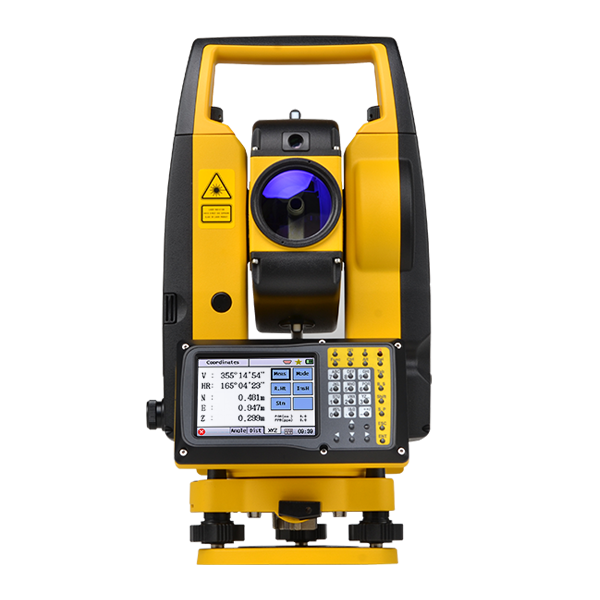

Model - N40 Series

  1"/2" Angle Accuracy, 1000m Reflectorless EDM

  Graphic Display with 3.5 Inches Touch Screen

  Cable-Free Connection by Bluetooth or USB

  EDM Trigger Key

  Auto Instrument Height & Guide Light (*1)

  Camera for Target Aiming & Recording (*2).

Model - NT-023

  Disruptive Innovation in Theodolite 300m Distance Measurement

  Supportable for Long-term Working

  Standard Laser Pointer

  Numeric Keypad

  2.6 Inches LCD Screen with Illumination

  Angle, Distance and Axes Onboard Program.

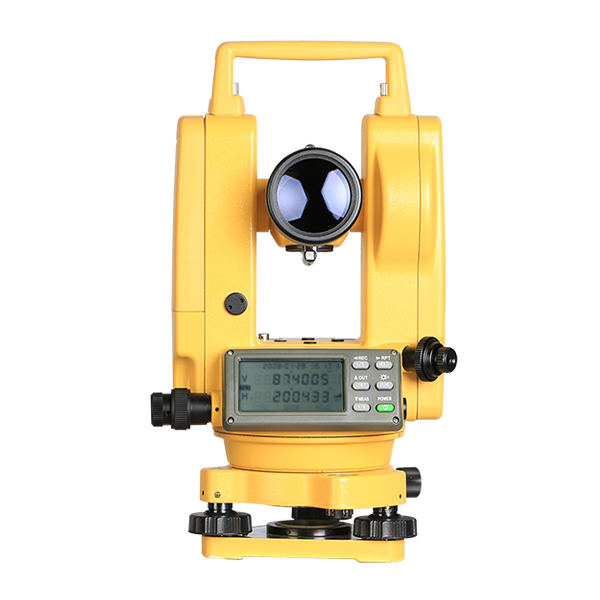

Model - ET Series

  Electronic/Laser Theodolite

  2"/5" Accuracy in option

  Advanced EDM design

  Laser plummet and laser pointer function for ET-02L/05L

  Movable tribrach for ET-02F/05F

  Competitive performance.

Model - NL-C32

  32X Telescope

  Air Damping Compensator

  Light & Durable Tool for Levelling.

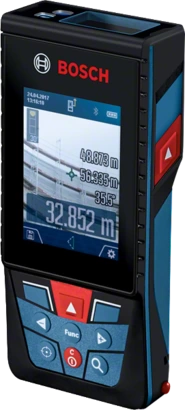

GLM 150C

Additional data
Digital viewfinder	integrated
Laser diode	650 nm, < 1 mW
Measurement range	0.08 – 150.00 m
Data transfer	Bluetooth™ Smart
Weight, approx.	0.23 kg
Units of measurement	m/cm, ft/inch
Laser class	2
Measurement accuracy, typical	± 1.5 mm* (*plus use-dependent deviation)
Power supply	3 x 1.5 V LR6 batteries (AA)
Automatic deactivation	0 min
Memory capacity (values)	50
Dust and splash protection	IP 54
Tripod thread	1/4"
Supported Android devices	Smartphone with Android 4.3 or higher
Supported iOS devices	iPhone 4S or higher, iPad (3rd Gen. or higher), iPad Air (1st Gen. or higher), iPad mini (1st Gen. or higher)
Laser colour	Red
Measuring range, up to	150 m

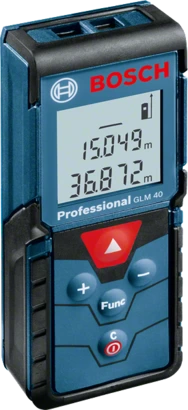

Model - GLM40

Additional data
Laser diode	635 nm, < 1 mW
Measurement range	0.15 – 40.00 m
Weight, approx.	0.1 kg
Measurement time, typical	< 0.5 s
Laser class	2
Measurement accuracy, typical	± 2.0 mm* (*plus use-dependent deviation)
Measurement time, max.	4 s
Power supply	2 x 1.5 V LR03 (AAA)
Automatic deactivation	5 min
Laser colour	Red
Measuring range, up to	40 m

Model - GLL 5-50 X

Additional data
Working range with receiver, value	50 m
Accuracy	Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Working range	15 m
Working range with receiver	50 m
Laser diode	630 – 650 nm, < 1mW
Operating temperature	-10 – 45 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range of laser points, max.	5 m (bottom)
Self-levelling range	± 3°
Levelling time	4 s
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	24 h
Tripod thread	5/8"
Weight, approx.	0.5 kg
Colour of laser line	red
Color of plumb points	red
Plumb point accuracy	± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value	15 m

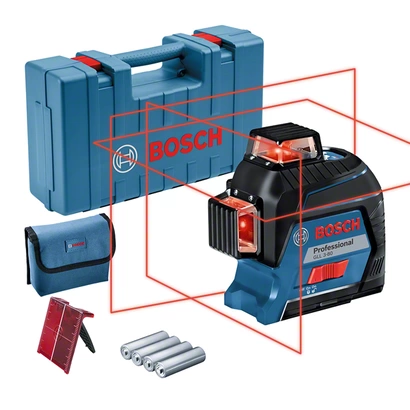

Model - GLL 3-80

Additional data
Working range with receiver, value	120 m
Accuracy	± 0.3 mm/m*/** (*for the four horizontal intersection points; **plus use-dependent deviation)
Projection	3 x 360° line
Laser diode	Line: 630 - 650 nm, < 10mW
Operating temperature	-10 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range	up to 30 m
Working range with receiver	up to 120 m
Self-levelling range	± 4°
Levelling time	4 s
Dust and splash protection	IP 54
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	4 h in 3-line mode
Tripod thread	1/4", 5/8"
Weight, approx.	0.82 kg
Colour of laser line	red
Compatible laser receivers	LR 6 + 7
Working range, value	30 m

Model - GRL 350 HV

Additional data
Working range with receiver, value	350 m
Accuracy	± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Laser diode	630 – 650 nm, < 5mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	3R
Working range	up to 60 m
Working range with receiver	up to 350 m (Diameter)
Self-levelling range	± 5° (8%)
Levelling time	30 s
Dust and splash protection	IP 56
Rotation speed	0/150/300/600 min−1
Power supply	2 x 1.5 V LR20 (D)
Operating time (max.)	30 h
Tripod thread	5/8"
Weight, approx.	1.8 kg
Colour of laser line	red
Color of plumb points	red
Working range, value	60 m

Model - Prism - Aluminum Tripod

  Light-weight and durable aluminium design

  No shrinking or swelling in tough conditions

  Flat head; Tripod thread: 5/8″M16

  Decorative chain available for JP series tripod.

Model - Prism - Wooden Tripod

  Joints and shoe points made by stable metal

  Extra stablity due to double banded legs

  Supplied with shoulder strap

  Round head optional for ATS-MR3.

Model - Prism - Fiberglass Tripod

  Long-lasting coated for hardware

  Quick and easy release for extended height

  Flat head.

Model - CLS25

  Carbon fiber pole

  Also compatible with RTK products.

Model - TL10

  Fixed adapter, available in camel, green, yellow, black and gray

  Plate vial: 60″

  Erect image.
