Rotating Laser Systems in Chennai

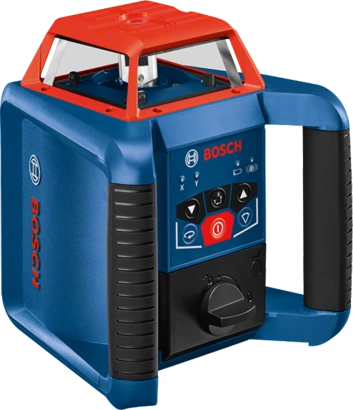

Model - GRL 350 HV

Additional data
Working range with receiver, value	350 m
Accuracy	± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Laser diode	630 – 650 nm, < 5mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	3R
Working range	up to 60 m
Working range with receiver	up to 350 m (Diameter)
Self-levelling range	± 5° (8%)
Levelling time	30 s
Dust and splash protection	IP 56
Rotation speed	0/150/300/600 min−1
Power supply	2 x 1.5 V LR20 (D)
Operating time (max.)	30 h
Tripod thread	5/8"
Weight, approx.	1.8 kg
Colour of laser line	red
Color of plumb points	red
Working range, value	60 m
